Lipid-Coated MOFs: a breakthrough platform for hydrophobic drug delivery

|

To develop more effective drug delivery platforms, scientists have increasingly turned to hybrid materials. In a recent study, researchers have combined the structural versatility of metal-organic frameworks (MOFs) such as Zeolitic Imidazolate Framework-8 (ZIF-8), which provide a crystalline scaffold that is both porous and pH-responsive – stable under neutral conditions but quickly degradable in acidic environments, such as those found in tumours – with the biocompatibility of lipid supramolecular assemblies such as micelles, vesicles, and liposomes.

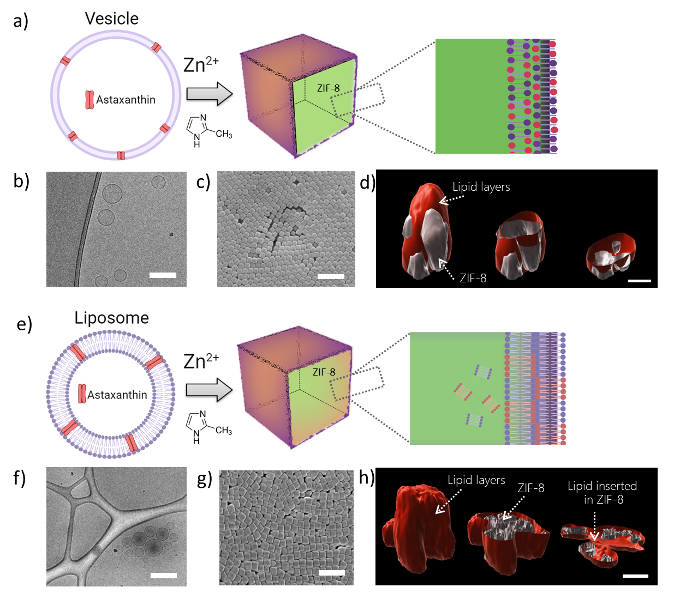

Schematic of the formation and structure of Astaxanthin-loaded particles of the biocomposites (a) vesicle/ZIF-8 and (e) liposome/ZIF-8. b,f) cryo-TEM images self-assemblies loaded with Astaxanthin (b) ATX@vesicles and (f) ATX@liposomes before their use for synthesizing the biocomposites. Scale bars: 200 nm c,g) SEM images of particles of the Astaxanthin-loaded biocomposites (c) ATX@vesicle/ZIF-8 and (g) ATX@liposome/ZIF-8. Scale bars: 500 nm. d,h) Confocal microscopy images of Nile Red fluorescent labelled (d) vesicle/ZIF-8 and (h) liposome/ZIF-8 particles. Imaris 3D reconstructions of whole biocomposite stretched in Z-direction are shown on the left and Z-stack images in the middle and in the right. 3D reconstruction of the particles shows the spatial localization and penetration extend of lipid in ZIF-8 particles. Red: lipids Grey: ZIF-8. Scale bar: 500 nm.

Dr. Mary Cano-Sarabia/Prof. Daniel Maspoch (Catalan Institute of Nanoscience and Nanotechnology), Prof. Heinz Amenitsch/Prof. Paolo Falcaro (Graz University of Technology) and colleagues explored the in situ formation of ZIF-8 in the presence of two amphiphilic lipid self-assemblies – CTAB-cholesterol vesicles and DMPC-cholesterol liposomes—to yield hybrid lipid/ZIF-8 biocomposites. Using different analytical techniques, including Small Angle X-Ray Scattering (SAXS) available at the CERIC Austrian Partner Facility in Elettra Sincrotrone Trieste, scientists studied structure and behaviour of the hybrid materials. They discovered that hydrophobic drug molecules loaded-vesicles coat the surface of the ZIF-8, while liposomes had them distributed throughout the whole particle. Liposomes also accelerate the conversion of ZIF-8 to a denser phase ZIF-C in physiologically relevant media. These differences led to varied degradation behavior – liposomes were significantly more stable – in physiologically media. Moreover, even if both vesicle- and liposome-derived biocomposites achieved high encapsulation efficiency, researchers discovered that liposomes exhibited a better, sustained release behaviour.

This study explains how supramolecular lipid assemblies can influence MOF formation, stability, and, crucially, cargo encapsulation and release, highlighting the great potential of lipid/ZIF-8 hybrids as tunable (i.e. with personalised release profiles) platforms for drug delivery, particularly for hydrophobic and unstable therapeutic agents.

ORIGINAL ARTICLE:

Lipid/ZIF-8 Biocomposites Based on Liposomes or Vesicles: In Situ Formation, and Preliminary Evaluation as Delivery Vehicles for Hydrophobic Drugs
Cano-Sarabia M., Aydin F., Meng L., Gil-Bonillo M., Fonseca J., Dietrich M., Renner S., Amenitsch H., Falcaro P., Imaz I., Maspoch D., Small, 2025
