600 MHz Nuclear Magnetic Resonance Spectrometer

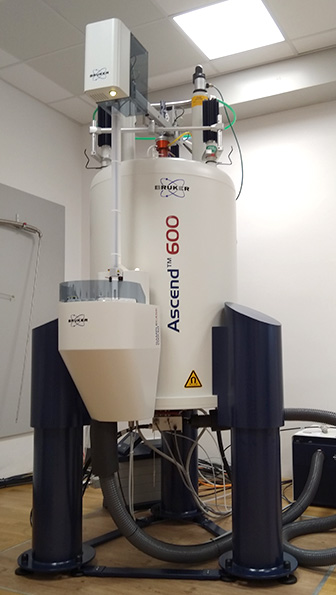

600 MHz NMR (Oro) at the Slovenian NMR Centre in Ljubljana

Technical Specifications

MAGNET

14.1 Tesla 54 mm bore ASCEND superconducting magnet

CONSOLE

Four channel AVANCE NEO console (two high band 1H and 19F channels and two broad band channels, 6-365 MHz)
High performance Bruker Orthogonal Shim System (BOSS-III), 36 shim gradients
System for automatic matching and tuning on all channels
10 A gradient module
Advanced Bruker Smart Variable Temperature (BSVT) control unit

PROBES

5 mm BBFO 600 MHz S3 with z-gradient, inner coil optimized for observation of nuclei between 31P and 107Ag, outer coil optimized for 1H decoupling (and observation too), automated tuning and matching provided with Bruker ATM (VT range: -150 °C to +150°C)

SAMPLECASE

A 24 sample, random-access, automation system (temperature range: 0 °C to 40°C)

HOST COMPUTER

HP Z4 G4 Workstation, Intel Xeon W-2135 CPU, 32 GB ram, Samsung Evo850 250GB SSD + Toshiba 2TB hard drive, Quadro P2000 graphic card, HP z24nG2 24″ LCD monitor

SYSTEM

Windows 10

SOFTWARE

Bruker Topspin 4.0.9

Contact: Janez Plavec
Tel:+386 147 60 353

Detailed information can be found on the Instrument’s webpage.
